Description:

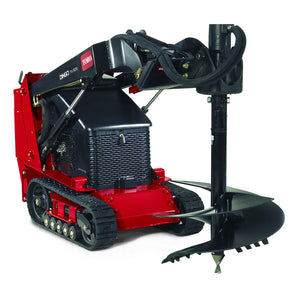

In any drive head, there is a tradeoff between torque (power) and speed (revolutions per minute). The high torque head provides a large amount of torque to the auger at a slower speed. The high torque translates into the Dingo's capability to dig 30" (76.2 cm) holes up to 6' (1.8 m) deep in clay, gravel, sandstone and many other conditions where lower torque heads get stuck.

Features:

• Designed for large auger bits up to 30" (76cm)
• High Torque (Power) Drive for the most demanding conditions
• Direct planetary drive

Specifications:

• Auger Speed: 57 rpm at 11 gpm (41.6 LPM), 95% efficiency
• Torque: 1515 ft-lbs at 3,000 psi (461 m-kg at 207 bar)
• Shaft Diameter: 2.6 in. / 6.6 cm
• Construction: Fabricated, welded steel frame
• Mounting Frame: Dingo® quick-attach mount plate, fabricated, welded base
• Quick Couplers: Dripless, flush face quick couplers
• Compatible Models:
• Dingo 320-D
• Dingo 323
• Dingo TX 1000
• Dingo TX 1000 TURBO
• Dingo TX 1300
• Dingo TX 427
• Dingo TX 525
• Dingo TX 700
• Dimensions:
• Width: 24 in. / 60.9 cm
• Height: 23 in. / 58.4 cm
• Length: 16 in. / 40.6 cm
• Weight: 182 lbs / 82.6 kg
